Portable Bi-Directional Amplifier (BDA) Systems
The industry leader since 2008

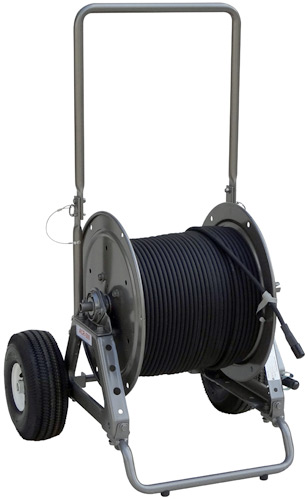

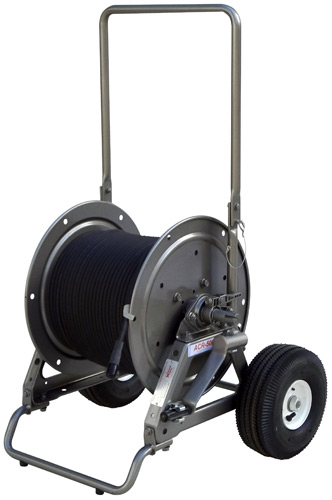

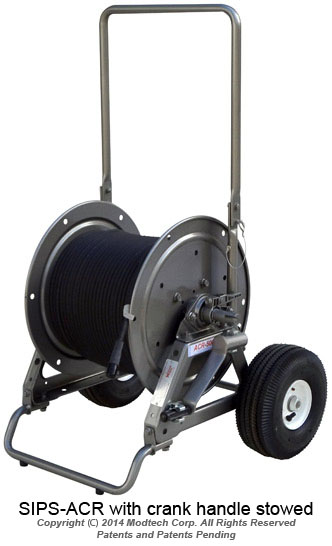

SIPS-ACRSIPS-ACR Auxiliary Cable Reel with crank handle stowed
SIPS-ACR Auxiliary Cable Reel with crank handle stowed
SIPS-ACR Auxiliary Cable Reel with crank handle stowed

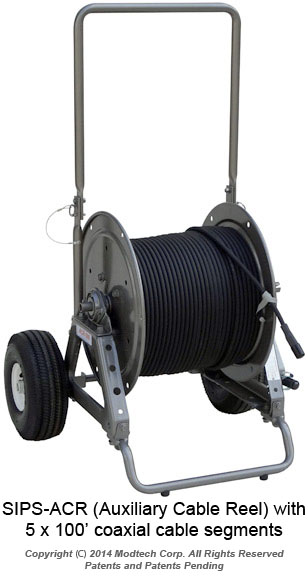

SIPS-ACR Auxiliary Cable Reel with 5 x 100' coaxial cable segments
SIPS-ACR Auxiliary Cable Reel with 5 x 100' coaxial cable segments
SIPS-ACR Auxiliary Cable Reel with 5 x 100' coaxial cable segments
Auxiliary Cable Reel
Extend coaxial cabling as required using ... SIPS-ACR

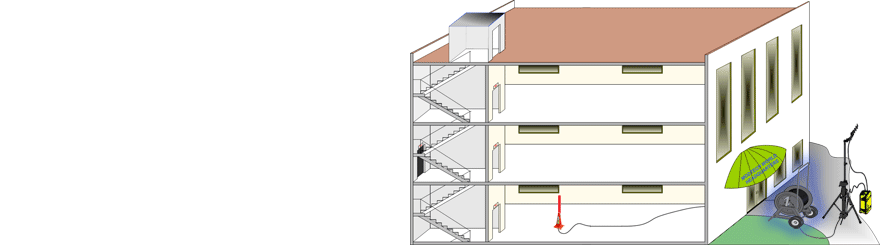

Extend coaxial cabling into structure as required
Overview
While SIPS-BDA (Bi-Directional Amplifier) and SIPS-FAK (Flexible Antenna Kit) provide cable to handle most tactical applications, SIPS-ACR (Auxiliary Cable Reel) provides additional RF cable on a rugged, roll-around cable reel. SIPS-ACR includes five (5) x 100 feet cable segments joined by N-couplers allowing cabling to be extended as required in each circumstance. Large pneumatic tires enable easy rolling over rugged terrain and stairs. The reel incorporates tensioning and braking allowing a single operator to deploy cable in a controlled, snag-free manner. The large crank handle makes rewinding easy. Both the crank handle and tow handle stow compactly for easy transport.

Please contact a SIPS Specialist with your additional questions or requirements.


Benefits
• A single operator deploys just the right amount of cable in 100' increments, couplers included
• Provides ultra-flexible, low-loss cables having heavy duty reinforced N-connectors for maximum reliability
• Navigating rough terrain, stairs, etc. is easy with large pneumatic tires
• Handle and winding crank fold up for easy transport
• Cable can be shared between multiple systems


System includes

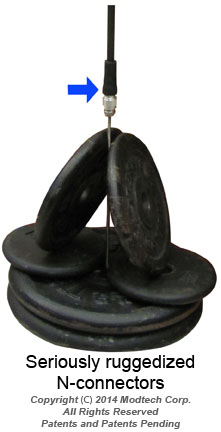

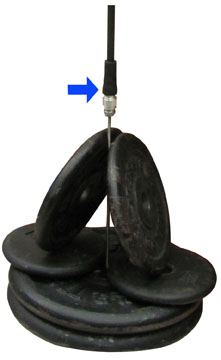

Seriously ruggedized N-Connectors
Seriously ruggedized N-Connectors
Seriously ruggedized N-Connectors

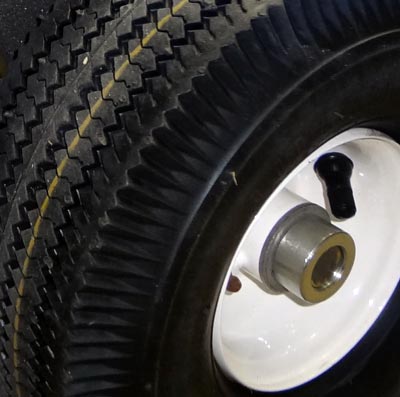

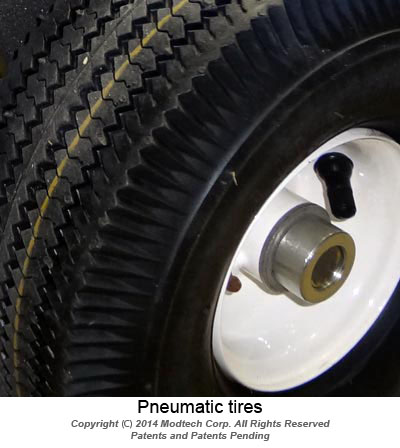

Pneumatic Tires
Pneumatic Tires
Pneumatic Tires

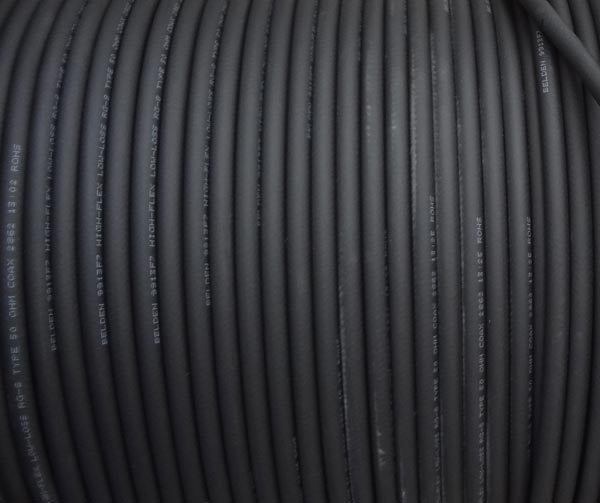

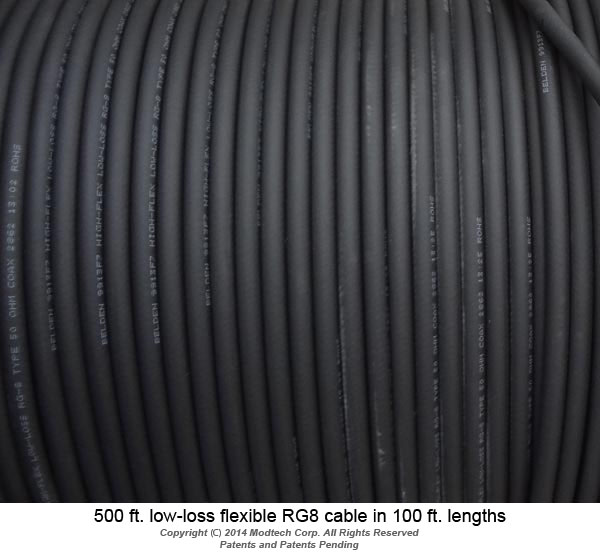

500ft RG8 low-loss flexible cable in 100ft coupled lengths
500ft RG8 low-loss flexible cable in 100ft coupled lengths
500ft RG8 low-loss flexible cable in 100ft coupled lengths

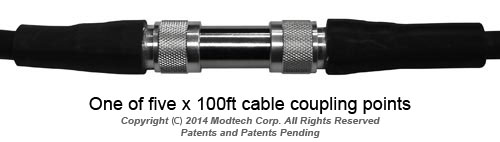

One of five x 100ft cable coupling points
One of five x 100ft cable coupling points
One of five x 100ft cable coupling points
